2km Jamming Distance Portable Drone Jammer Gun Shape
|Place of Origin:||Jiaxing, zhejiang, China|
|Brand Name:||Zhejiang Zhongdeng Electronic Technology|
Payment & Shipping Terms:
|Minimum Order Quantity:||negotiable|
|Product Name:||Drone Signal Jammer||Working Frequency:||0.9GHz To 5.8GHz|
|RF Power:||10W||Continuous Working Time:||1hour|
2km Distance Drone Signal Jammer,
2km Distance Portable Drone Jammer,
Gun Shape Drone Signal Jammer

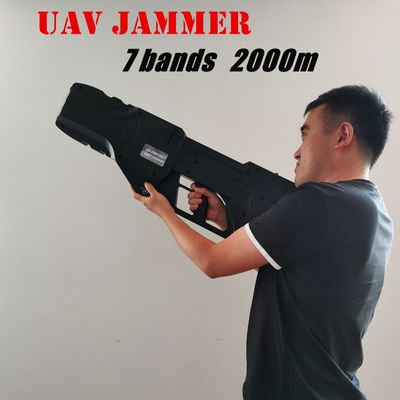

Gun shape drone Jammer , Portable, 2km jamming distance
In the current time, the small drones with slow speed and low flying height become popular in civilians. It can be used by people for many applications such as aerial photography, mapping, power line checking, anti-terrorism reconnaissance and people rescue.
Nevertheless, the drones also have some negative effect on society. People play their drones around airport and some crowded places. Criminals use drones to transport drug, escape from prison, and deliver dangerous things. When the drones with slow speed and low flying height entry some important or sensitive areas, people urgently need to know the methods to banish these drones at emergence moment. To deal with these drones, technique equipment is also important.
ZD-GR010Q7 drone jamming gun applies the automatic digital interference code technology. It blocks the remote-control channels within frequency range of 0.9GHz to 5.8GHz of drone by emitting wireless interference signal. Then the drone can’t be remote controlled and move away from the original flying path. (The drone may land or go back to the starting point). This jammer is also equipped with built-in battery which is easily for user to replace it. By replacing battery, the jammer can work for more time during some jamming actions.
This jammer can be used to form “no fly zone” of drones. It can prevent criminals using drones to do illegal things such as bombs activation, transporting drug, escaping from prison, distributing leaflets, and other harmful actions. It should be used to protect security of important places and important political leaders.
ZD-GR010Q7 drone jamming gun is manufactured by Zhejiang Zhongdeng electronic technology Co. Ltd in China.The advantages of this jammer are easy carrying, wide jamming frequency and built-in battery easy to be replaced. It is widely used for security protecting of important conference, large rallies and important places.
1). It can effectively remote interfere the control signal of small drone with slow speed and low height like wireless remote control drones and drones with GPS, Glonass, Beidou navigation system. The interfered drones will not be remote controlled and go back to the starting point or land.
2). Once the illegal drone is found to be close to or entry the warning area, the jammer will directional jam them immediately.
1) Multiple working bands. This product contains all the remote-control bands of small drone with slow speed and low height in the current market. These bands include 900MHz, 2.4GHz, 5.8GHz and GPS.
2) The operating panel of the main machine is equipped with individual band switches. These switches can be used to select the interference bands.
3) The jammer has function of battery protecting. It can arrange the battery power and temperature. To protect the battery, the jammer can reminder user to turn off it when the battery power is low.
4) The battery can be taken off easily if customers require. Therefore, the main device and battery can be transported individually. This feature is useful in airlift.
5) It has function of self-protect. Once the antenna or wire connection got problems, the jammer would start alarm and turn off the inside circuit to protect important components from damage.
1). Working bands: 5 bands
Satellite navigation 1.5G:1559-1606MHz GPS,Glonass,Beidou
2.4G:2405-2483MHz drone with 2.4G control signal frequency
5.8G:5725-5850MHz drone with 5.8G control signal frequency
F1, F2: These are the special bands which will be decided refer to the drone bands of different countries.
2). Jamming distance
No less than 2km
3). Antennas(2 antennas)
One antenna is a log periodic antenna. Another antenna is a panel antenna. These two antennas can combine into one entire antenna.
4). Power supply (lithium battery inside the main device)
The battery can support the device keep emitting signal for no less than1 hours. The waiting time of device is not less than 24 hours.
7). Waterproof:It can work in light rain
8). Operation :
First, user looks for drones by using remote telescope. When illegal drones are observed to be close to or entry the warning area, the jammer will directional interfere the targets. Besides, the jammer can be operated by single person.
