Portable drone jamming gun with drone detection functions
Place of Origin:China
Brand Name:Zhongdeng
Model Number:ZD-GR010Q8DJ
Tags:
Product Details
Highlight:
portable drone jammer with detection
,drone jamming gun portable
,anti-drone gun with detection
Detection Frequencies:
300MHz-6GHz
Detection Methods:
Spectrum Analysis+ Signal Decoding
Detection Range:
0.5-3km（refers To The Environment）
Jamming Bands:
400, 900MHz、1.5GHz、2.4GHz、5.8GHz（can Be Customized To Add More Bands）；
Jamming Power:
200W
Jamming Range：:
2-3km（refers To The Environment）
Antenna:
High Gain Directional Antenna
Product Description

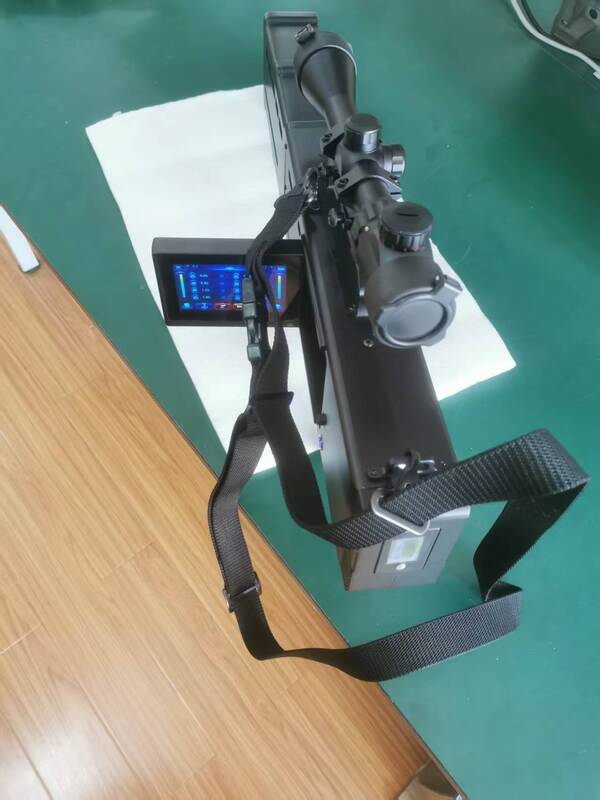

ZD-GR010Q8DJ Drone Detection and Jamming Gun
The ZD-GR010Q8DJ is an advanced, all-in-one drone detection and jamming gun that integrates detection, jamming, and positioning capabilities. This portable security solution utilizes cutting-edge technology to detect drone IDs, positions, and operator locations while transmitting radio frequency jamming signals to disrupt drone control, video transmission, and navigation systems.
This device effectively forces drones to land or return to their takeoff point, making it ideal for safeguarding critical locations and VIPs against unauthorized drone activities including remote-controlled bombings, drug trafficking, espionage, and other security threats.
Key Features
Detection and Jamming Integration
- Combines detection, direction finding, positioning, and countermeasure functions in a single device
- Immediate jamming activation upon target drone detection and locking
Advanced Positioning Capabilities
- Real-time display of drone position (latitude, longitude, or block information), direction, and distance
- Locates and displays real-time position, orientation, and distance of drone operators
Detection and Alert Systems
- Direction finding with azimuth information presented through radar charts
- Audible and visual alarms upon drone intrusion detection
- Drone ID recognition displaying model, frequency (including real-time frequency hopping), and signal strength
Network and Data Management
- Real-time jamming status display on main interface
- Wireless data transmission of detection and related information to monitoring centers
- Multi-device networking support for unified scheduling and control in large areas
User-Friendly Design
- One-click language switching for display customization
- Handheld gun body design, lightweight and portable
- Detachable battery design for quick replacement and extended operation
- Backpack design with hooks for strap connection
- Dual power charging modes: direct power cord or separate battery charging
- Battery level display on screen when device is powered on
Technical Specifications
| Detection Frequencies | 300MHz-6GHz |
| Detection Methods | Spectrum analysis + signal decoding |
| Detection Range | 1.5-3km (environment-dependent) |
| Alarm Methods | Audible, visual, distance display, color-coded alarms |
| Jamming Bands | 420-470MHz, 825-940MHz, 1170-1280MHz, 1450-1550MHz, 1550-1650MHz, 2400-2500MHz, 5100-5300MHz, 5700-5890MHz (customizable) |
| Jamming Power | Approximately 250W |
| Jamming Range | 1500m |
| Power Supply | Built-in batteries |
| Jamming Modes | Force drone to return to takeoff position, force drone to land |
| Antenna | Built-in |
| Working Procedure | Automatic self-diagnosis upon startup, alarm upon drone detection, operator decision on jamming activation |
| Device Size | 69.5cm × 26cm × 7cm |
| Device Weight | Approximately 4.5Kg (excluding battery) |
| Operation | Can be operated with one or two hands for information checking and jamming activation |
The ZD-GR010Q8DJ Drone Detection and Jamming Gun is a versatile and powerful security tool designed for law enforcement, military, and critical infrastructure protection applications. Its comprehensive features and user-friendly design provide effective protection against unauthorized drone activities.
Product Summary
ZD-GR010Q8DJ Drone Detection and Jamming Gun The ZD-GR010Q8DJ is an advanced, all-in-one drone detection and jamming gun that integrates detection, jamming, and positioning capabilities. This portable security solution utilizes cutting-edge technology to detect drone IDs, positions, and operator ...
