|Product Type:||Mobile Signal Jammer||Application Scenes:||Qatar Emiri Diwan Palace|
|Antenna Type:||Directional Antenna||Total RF Power:||30W±1dbm|
|Jamming Distance:||25m（visible，mobile Signal Strength: GSM：-65dBm、3G：-75dBm、4G：-90dBm, All The Above Datas Are Signal Strength Shown In Mobile Phone）||Weight:||5kg|
25m Cellular Phone Signal Jammer,
25m Distance Mobile Signal Jammer,
Directional Antenna Cellular Phone Signal Jammer
Celluar Phone Signal Jammer Designed For Qatar Emiri Diwan Palace With 25m Jamming Distance

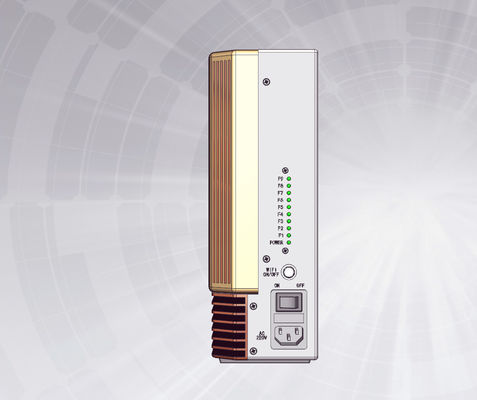

ZD-GR001/5G/QAT Mobile Signal Jammer
- General Description
ZD-GR001/5G/QAT Mobile Signal Jammer is specially designed and manufactured for high-level Qatar Emiri Diwan palace conference room.
The product applied intelligent digital jamming technology. It can jam all kinds of current mobile signals include 4G, 5G and WIFI. This product can classify different target signals and then jam them. It uses low power to achieve long jamming distance. Therefore, this technique has high efficiency and protects users from large radiation. The device has properties of small volume and light weight which makes it convenient to carry.
This product is widely used to ensure security of nation defence,
military information, government department and other department. It prevents mobile phone leak and eavesdropping which purifies environment of conference and office.
¨Military, public security, government, other departments, office and conference room
¨Public place:Conference centre, music hall, cinema, library, classroom, examination
¨Special place: court, prison and detention house
¨Other required places.
¨ This jammer can jam all kinds of current mobile signals include 2G, 3G, 4G, 5G mobile
signals and 2.4G, 5.8G WIFI signal. It can blocks mobile signal completely.
¨ The intelligent jamming technology also makes the output powerof jammer close to
mobile phone. It protects people from radiation.
¨ It is an environment friendly product that has power of 1W(same as mobile phone
power) for each band.
¨ It uses intelligent digital jamming technology to replace the barrage jamming which
makes jamming efficiency higher and reliable. This jammer can block signal effectively.
¨ High quailty directional antenna with outstanding accuracy makes it easy to control directions. And communications outside of jamming area will not be disrupted.
4. Technical specifications
1525-1627MHz (satellite telephone, 2W)
2400-2500MHz (2.4G WiFi),
5150-5850MHz (5.8G WiFi).
|Radiation angle||directional,horizontal angle 75°|
|Jamming distance||25m(visible,mobile signal strength: GSM:-65dBm,3G:-75dBm,4G:-90dBm, all the above datas are signal strength shown in mobile phone)|
|Power supply||220VAC±20%,50-60Hz / UPS (4KW)|
|Total RF power||30W±1dbm|
|Operation temperature||-10 ~ +45|
