Product Details
Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: ZD-GR050
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Output Power: |
120W |
Jamming Distance: |
100m |
Power Supply: |
AC220V |
Total Device Weight: |
24Kg |
Dimensions: |
540(length)´410(height)´270(thickness) |
Output Power: |
120W |
Jamming Distance: |
100m |
Power Supply: |
AC220V |
Total Device Weight: |
24Kg |
Dimensions: |
540(length)´410(height)´270(thickness) |

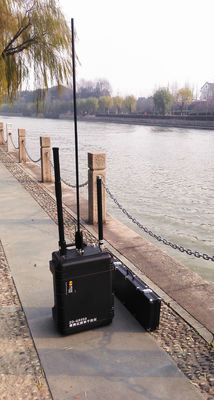

100m jamming distance portable Anti-Bomb Jammer with 1 hour working time
ZD-GR050 anti-bomb jammer uses an advanced technology called automatic digital interference code technology. This jammer can jam all kinds of wireless communication within a circle area of 100m radius. It can effectively prevent terrorists activating remote control bombs. It also can stop the expansion of mass incidents. The working time of this jammer is 1 hour. This product classifies and jams target signal. This device can use low power to achieve the effect much better than expected for various signals. Therefore, this technique has high efficiency and protects users from large radiation. The device has properties of small volume and light weight which makes it convenient to carry.
2. Applications
ZD-GR050 anti-bomb jammer can be widely used by departments of police, antiterrorism and country security protection.
¨ It can prevent activation of mobile remote controlled bombs and stop the terrorism activities.
¨ For the emergency security protection during mass disturbances and large meeting, it can block the mobile signal in a large range to stop the extension of chaos.
¨ When it is used in important department of country security and military, it can block mobile phone signal;
¨ To protect public security of some scenes, it can block wireless communication.
¨ When it is used in scenes of illegal gambling or sell drug, it can block mobile phone signal to stop the communication between criminals.
¨ When it is used in important department of country security and military, it can block wireless signal.
3, Advantages
¨ It applies one of the most advanced interference technologies called automatic digital interference code technology. With this technology, the jammer has advantages of high interference efficiency, large jamming area(100m radius) and long working time(1 hour). The volume of this useful machine is small so that it is easy to be carried and moved.
¨It can jam signals of all the required bands effectively. The interference efficiencies for different bands are almost same.
¨It has functions of displaying work state (band, output power, battery percentage), error warning (overpress, underpress, overheat) and so on.
4, Main technical specifications
¨ Frequency bands:20-6000MHz,Main frequency bands: Toy remote controller, car remote controller, Walkie-talkie, 2G,3G, 4G,WIFI and so on.
¨ Total output power: 120W.
¨ Effective jamming distance:100 meters,
For bands of phone:
2G,100 m(GSM phone signal -70dBm signal field intensity,visual range)
3G,80 m ( 3G phone signal -75dBm signal field intensity, visual range)
4G,80 m (4G phone signal RSSI-70dBm signal field intensity, visual range)
For bands of walkie-talkie:
60 m (The distance between two walkie-talkies with power 4W is 200 m)
¨ Power supply:AC220V/ chargeable battery
¨ Battery life:1h
¨ Total device weight:24Kg
¨ Device size(mm):540(length)´410(height)´270(thickness)
