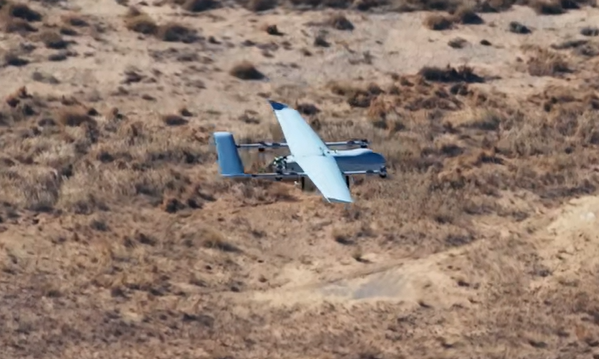

IP54 130–150 Km/H Fix Wing Drone With Large Load Weight

                                ZD-FDMD800K70 Fix Wing Drone

The global situation of the recent year is changing very fast. Fix wing drones are becoming more and more popular in all the countries.

Due to match the needs of fix wing drones, our company develops ZD-FDMD800K70 Fix Wing Drone. The followings are the advantages

of this fix wing drone.

1. ‌Excellent Cost Efficiency‌
   ZD-FDMD800K70 Fix Wing Drone has lower cost than ordinary commercial and military drones.
2. But it also has similar specifications like these drones.
3. ‌Superior Low-Altitude Penetration Performance‌
   Its distinctive large delta fixed-wing design delivers exceptional flight stability at altitudes below 200 meters, often skimming just above the ground to stay beneath the radar horizon of most mid-to-long-range air defense systems. This low-altitude flight profile, combined with a radar cross-section of roughly 0.1 square meters, makes it extremely difficult for conventional early warning radars to detect and track in time.
4. ‌Mass-Producible and Highly Reliable Design Philosophy‌
   Built with off-the-shelf civilian components including modified small internal combustion engines derived from general aviation and motorcycle parts, it avoids reliance on restricted high-end military supply chains. The airframe uses simple composite materials, and the entire platform consists of only around few major detachable parts, enabling rapid large-scale manufacturing even under international embargoes. It can operate reliably across extreme temperature range.
5. ‌

Key Operational Applications

1. Low-altitude surveillance, air defense for country borders, long range transportation.
2.
3.

Technical specifications:

Maximum take off weight: 70 kg

Practical ceiling: 6000 m

Maximum load: 18 kg

Continuous flying time: 600 min@15 kg

Wingspan: 2040 mm

Maximum speed: 180 km/h

Drone length: 2262 mm

Cruising speed: 130–150 km/h

Drone height: 400 mm

Ascent rate: ≤3.5 m/s

Power type: Oil-powered

Descent speed: ≤1.5 m/s

Take off method: Ejection launch

Wind resistance : Level 5

Recycle method: Parachute recycle

Flying distance: 800 km

Fuel tank: 19 L

Proof: IP54
