50km GNSS jammer special designed to defense The Poor man cruise missile

Name: 50km GNSS jammer special designed to defense The Poor man cruise missile
Brand: Zhejiang Zhongdeng Electronics Technology CO,LTD
SKU: ZD-GR250GN
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Zhongdeng

Model Number: ZD-GR250GN

Payment & Shipping Terms

Minimum Order Quantity: to be discussed

Price: to be discussed

Delivery Time: 2-3weeks

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                50km GNSS military jammer, cruise missile defense jammer, long-range GNSS signal jammer


Frequency:	GNSS	Jamming Range:	50km
Jamming Power:	250W	Working Time:	24 Hours Continuously Work
Power Supply:	220VAC Or 24VDC(vehicle Mounted)

Frequency:	GNSS
Jamming Range:	50km
Jamming Power:	250W
Working Time:	24 Hours Continuously Work
Power Supply:	220VAC Or 24VDC(vehicle Mounted)

Product Description

50km GNSS Jammer for Defense Against Poor Man's Cruise Missile

System Overview

50km 10-band GNSS jammer system designed to interfere with drones using satellite navigation systems, forcing them to move away from their intended destinations.

Product Description

This advanced GNSS jammer system targets all major satellite navigation signals. Utilizing sophisticated jamming technology, it generates high-efficiency digital jamming signals to disrupt satellite navigation, preventing unauthorized devices from obtaining GNSS location information.

The system offers versatile deployment options including stationary installation and vehicle-mounted applications. Its compact design facilitates easy integration and deployment, available as standard indoor rack-mounted units or outdoor units housed in aluminum cases.

Primary Application: Designed for deployment in sensitive areas where drone intrusion via GNSS navigation signals must be prevented, specifically targeting threats such as the "poor man's cruise missile."

Key Features

Compact design for easy stationary installation

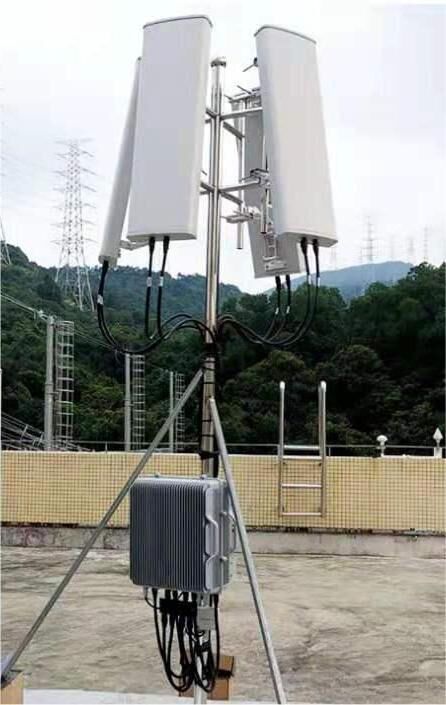

Four directional antennas providing omnidirectional jamming coverage
Large surface heat sink with integrated cooling fans
Single-switch control technology for individual frequency band management
Dual power supply options: AC220V or DC24-28V (customizable)
IP65 weatherproof rating
External power supply for enhanced anti-jamming capability and superior heat dissipation

Technical Specifications

Parameter	Specification
Jamming Bands	GPS L1, L2, L5; GLONASS L1, L2; GALILEO E1, E5a, E5b; BDS (multiple frequencies)
Total Jamming Power	250W
Jamming Range	50km
Antenna Gain	12-15dBi
System Power Consumption	1200W
Main Unit Dimensions	52 × 53 × 47 cm
Main Unit Weight	49kg
Power Supply	220VAC or 24VDC (vehicle mounted)
Continuous Operation	24 hours
Operating Temperature	-40℃ to +55℃

Main Components

1 Main Unit
1 Power Supply Box
4 Directional Antennas
1 Tripod
1 Power Cable for 220VAC
