Long Range Vehicle Mounted Drone Jammer special for FPV

GR500U-600LR vehicle mounted drone jammer

1. Description

In the recent years, drones especially FPV drones with special frequency from 100-400MHz and special LORA communication technology is widely used in frontline. The drone jammer devices with traditional technology have poor performance on these FPV drones. In order to defend against these FPV drones with special frequency and protect soldiers. Our company developed GR500U-600LR vehicle mounted drone jammer. This device is vehicle mounted drone jammer. It applies LORA jamming technologies on three channel within frequency bands of 100-400MHz. RF power of each band is 200W. Total power is 600W. Antennas are all omni-directional antennas.

      2. Technical specifcations

1. Jamming bands (MHz):100-200,200-300,300-400；
2. RF total power:600W,each band 200W；
3. Jamming technology:LORA jamming technology；
4. Jamming range: 1km(jamming distance to drone control distance ratio = 0.5:1, for FPV controller with RF power 1W)
5. Antennas:3 omni-directional antennas

100-200MHz,One antenna ；

200-300MHz,One antenna ；

300-400MHz,One antenna ；

1. Antenna gain:around 1dBi；
2. Antenna VSWR: £1.8；
3. Antenna impedance:50Ω；
4. Power supply:28V50A；(we suggest to use vehicle mounted alternator for power supply)
5. Main unit size: 480*400*235mm；
6. Main unit weight:35kg；

       3. Antenna features

1. Antenna size:three cylindrical with size of F65*30cm,F50*30cm,F50*30cm,installation rack height is 50cm；

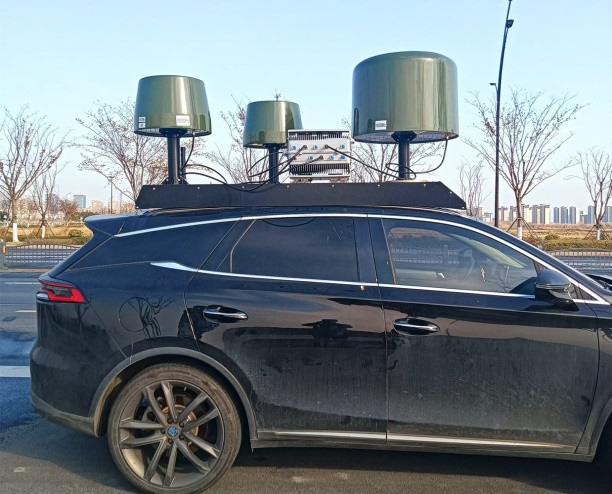

2. Antenna installation layout:triangle layout as below figure shown;
3. Main unit connectors:N type connectors;
4. Antenna connectors:N type connectors;
5. Operation temperature:-40-+55℃ .
6. Operation humidity:≤85%RH.

      4. Device list

1. 1 Main unit ；
2. 3 Omnidirectional antennas；
3. 3 installation racks for Omnidirectional antennas；
4. 3 RF cables；
5. 1 DC cable；
6. 1 Control cable.
