Hunting Eagle No 2 drone defense system

--- Omni directional detection jamming,white list,no duty people require,defend ordinary/FPV drones

1.“Hunting Eagle No1”drone defense system uses advanced radio protocol technology combine with digital intereference code jamming technology. It can do long range detection, recognition, localization, neutralization for drones. It has functions of drone ID recognition, white list, automatical defense.

The system applies multiple detection methods to detect and recognize commercial drone and FPV drones in the market include AI,protocol decryption,spectrum analysis and so on . When the system does not detect drone, the jammer of the system will stand by and transmit no signal. When the system detect drones, the jammer of the system will start and jam the detected drones.

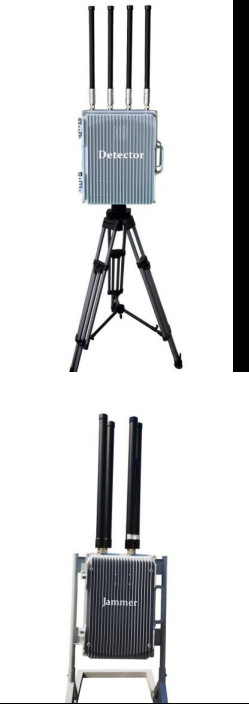

The system consists of omnidirectional detector subsystem and omnidirectional jammer subsystem. The system has small volume and can be separated which makes transportation and deployment convenient.

2.¨ Strong detection ability:multiple detection methods, large quantity detection drone type, it covers commercial drone and FPV drones in the market ；

¨ It can decrypt DJI O1,O2 telemetry drones and drones with China national standard GB42590-2023, European union standard ASD-STAN prEN4709-002 and American standard ASTM F3411 ;

¨ Accurate recognition:It can accurate recognize drone and its UAV ID ；

¨ No duty people require:It has no duty people required mode. In this mode, the system will automatically jam drones when it detects drones；

¨ White list:it can mark drones into white list by one key. When the system detects drones in white list, it will not alarm or jam；

¨ Omnidirectional defense:defense drone invasions from all the directions；

¨ Multiple frequency bands defense: it covers majority drone frequency bands. It has strong tactical usage；

¨ It has statistic function:the system can record drone ID,quantity,invasion time,defense time；

¨ Easy and convenient installation and deployment:The system can be installed by using fix bars for long term stationary protection in high protection level required area；It can also be fixed on the vehicle roof for movement defense application；

¨ Continuous working:it can work all day all weather.

3, Technical specifications

¨ Detection range:1-10km(depends on the surround electromagnetic environment)；

¨ Detection frequency bands(MHz):900/1200/2400/5200/5800；

¨ Detection drone quantity:simultaneously detection drone quantity≥5 drones；

¨ White list: When the system detects drones in white list, it will not alarm or jam；

¨ Jamming bands (MHz):800/900/1500/2400/5800(can be customized refers to customers’ requirements)；

¨ Jamming range:3km(for DJI phantom 3,4)；

¨ Jamming mode:banish or force landing；

¨ Operation voltage:AC220V±20V；

¨ Weight : detector weight:9.5Kg,jammer weight(5 frequency bands):15Kg；

¨ Device size:detector:370mmX312mmX133mm；

jammer:450X330X180mm

¨ Operation temperature:-40°~+55°C；

¨ Proof: IP65.
