180W Backpack Jammer With 5km Jamming Range And 7 Frequency Bands

Product Details

Place of Origin: Jiaxing, Zhejiang, China

Brand Name: Zhejiang Zhongdeng Electronic Technology

Model Number: ZD-GR030/750

Payment & Shipping Terms

Get Best Price
Product Details
High Light:

Backpack Drone Jammer

,

180W Military Signal Jammer

,

7 Frequency Bands Backpack Jammer

Frequency Bands:
7 Bands: 800MHz To 6GHz
Jamming Range:
5km
Weight:
12Kg
Power:
180W
Carrying:
Backpack Carrying
Battery Working Time:
1 Hour
Frequency Bands:
7 Bands: 800MHz To 6GHz
Jamming Range:
5km
Weight:
12Kg
Power:
180W
Carrying:
Backpack Carrying
Battery Working Time:
1 Hour
Product Description

180W Backpack jammer with 5km jamming range and 7frequency bands

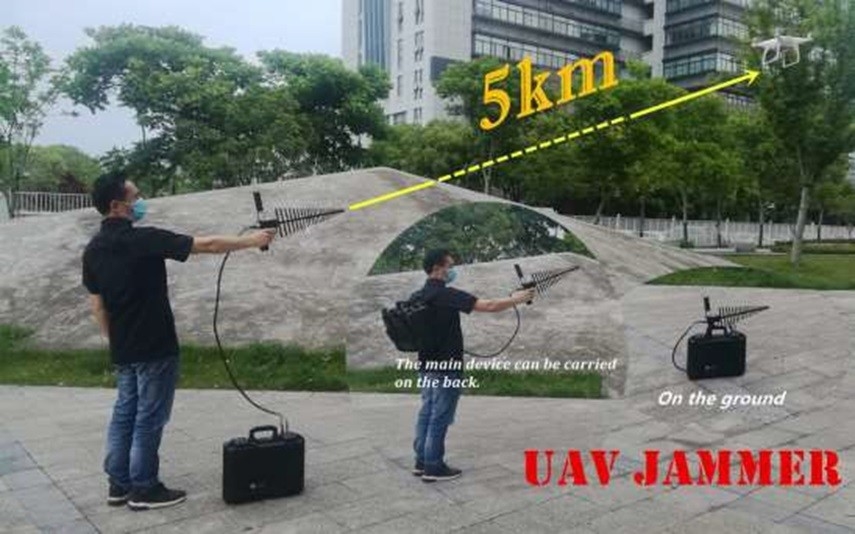

---7 frequency bands, Large angle, 5km Large range,180W power



180W Backpack Jammer With 5km Jamming Range And 7 Frequency Bands 0





1, Overview



ZD-GR030/750 backpack drone jammer applies the automatic digital interference code technology. It blocks the remote-control channels of drone by emitting wireless interference signal. Then the drone can’t be remote controlled and move away from the original flying path. (The drone may land or go back to the starting point).

This jammer can be used to form “no fly zone” of drones. It can prevent criminals using drones to do illegal things such as bombs activation, transporting drug, escaping from prison, spying military base, distributing leaflets, dangerous objects delivery and other harmful actions. It should be used to protect security of important places and important political leaders.

This jammer is manufactured by Zhejiang Zhongdeng electronic technology Co. Ltd in China. The advantages of this jammer are easy carrying, high accuracy, environment friendly and can be operated by single person. It is widely used for security protecting of important conference, large rallies and important places.



2, Functions



  1. 180W Backpack Jammer With 5km Jamming Range And 7 Frequency Bands 1It can effectively remote interfere the control signal of small drone with slow speed and low height like wireless remote control drones and drones with GPS, Glonass, Beidou navigation system. The interfered drones will not be remote controlled and go back to the starting point or land.



  1. 180W Backpack Jammer With 5km Jamming Range And 7 Frequency Bands 2Once the illegal drones is found to be close to or entry the warning area, the jammer will directional interferes them immediately.

3, Technical specifications



1.Working bands: 7 bands include main bands of drone control such as 868MHz, 900MHz,GPS(1.2G,1.5G),2.4GHz, 5.2GHz,5.8GHz and so on;(able to add other frequency bands according to customer requirements)



2.Jamming power: Total power is 180W.Jamming distance

5000 meters(For phantom 3 and phantom 4).

3.Antennas(2 antennas)

One antenna is a log periodic antenna. Another antenna is a panel antenna.

These two antennas can combine into one entire antenna.



4.Equipment weight:12Kg



5.Size:41X32X17cm

6.Power supply (lithium battery inside the main device)

The battery can support the device keep emitting signal for no less than 1 hours.
