Through Wall Radar Penetrate 120 Degree In Azimuth

Through Wall Radar Penetrate 120 Degree In Azimuth

Product Details:

Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: CEM100
Get Best Price Contact Now

Detail Information

FOV: 120° In Azimuth, 90° In Elevation Multi-target Detection: ≥3
Device Weight: 600g(include Battery) PENETRATION PERFORMANCE: Able To Detect Live Object Behind Wall/barrier Of Common Material At 37cm
Detection Range: 30m
High Light:

30m Through Wall Radar


120 Degree Through Wall Radar


Lithium Battery Through Wall Radar

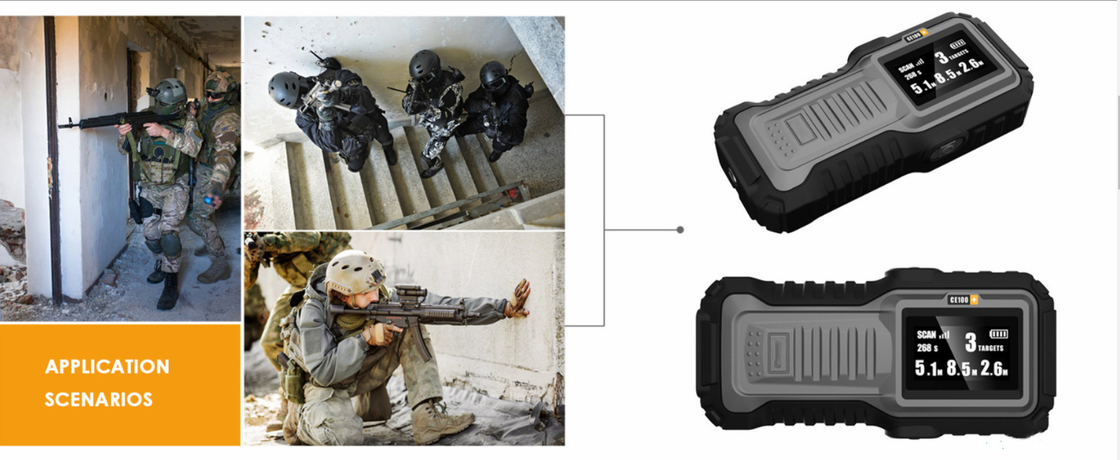

Product Description

Through Wall Radar Can Penetrate With 120 Degree Field Of Version

Through wall radar can penetrate with 120 field of version




In the 21th Century, there are still wars happening in some countries. In order to provide service for army in the real field,

our company develops CEM100 through wall radar.  It can help soliders who want to find out enemies behind obstacles during street battle.

It is a rugged through wall radar which has ultra portable and one button operation structure.

The radar has humanized design of concealed detection  mode, it supports screen-off detection and alert operators

to the presence of potential threats. The most useful advantage of CEM 100 is the 120 degree field of version which makes

it search a large range behind the wall.


Through Wall Radar Penetrate 120 Degree In Azimuth 0




                                                               Large field of version

                                                             Able to detect live object behind wall/barrier
                                                              with 120 degree field of version


HIGH REAL TIME PERFORMANCE                                                                    MULTI-TARGETS DETECTION
Real-time detection& display of moving and                                                   Maximum up to 3 targets detection and display simultaneously
static targets



SCREEN-OFF DETECTION MODE                                                                    SAFETY DESIGN FOR OPERATOR
Support screen-off detection and alert, reducing                                              Wireless remote control for detection and
                                                                                                                          display, stand-alone screen supports tactical
                                                                                                                          application for long-playing monitoring and
                                                                                                                          synergetic observation



SIMPLE USER INTERFACE                                                                            HIGH PROTECTION GRADE
Provide clear and intuitive detection results                                                            IP67
for strategy making




Device type  Hand-held through wall radar
Penetrable materials  Concrete, reinforced concrete, cement, plaster, mixed brick,
 wood, adobe, stucco and other non-mental standard building
HIGH PENETRATION PERFORMANCE Able to detect live object behind wall/barrier
of common material at 37cm
Detection range  20m(static living object)
 30m(moving living object)
Large FOV  120° in Azimuth, 90° in Elevation
Display model  Presence of static & moving targets, quantity and real-time
Multi-target detection  ≥3
Weight  600g(include battery)
Protection grade  IP67
Power supply  Lithium battery
Durable working time  4h
Dimension  218×105×46mm
Wireless operation  Built-in wireless module, support remote display and control
distance : 50m
Optional accessories  Wireless remote display terminal, batteries
