Military Standard Vehicle Mounted Jammer with 200m Jamming distance
|Place of Origin:||Jiaxing, Zhejiang, China|
|Brand Name:||Zhejiang Zhongdeng Electronic Technology|
Payment & Shipping Terms:
|Minimum Order Quantity:||negotiable|
|Total Output Power:||500W||Jamming Distance:||200m ; For Standard Signal Strength|
|Dimensions（mm）:||550*480*600mm（L*W*H）||Input Voltage:||AC220V Or Engine Drive Generator|
|Product Name:||Vehicle Mounted Jammer||Standard:||Military Standard|
Military Standard Vehicle Mounted Jammer,
500W Vehicle Mounted Jammer,
200m Vehicle Mounted Jammer

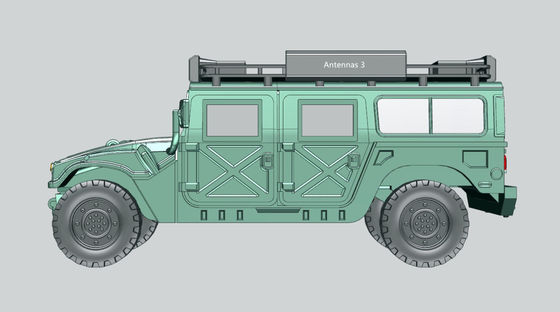

Military Standard Vehicle Mounted Jammer Has All Main Units On The Vehicle Roof
Military standard Vehicle Mounted Jammer can set allied frequency while it is jamming frequency from 20MHz to 6000MHz
In the recent years, different kinds of jammers appear in global market. Many of them have poor effectiveness to jam communication signals like cellular phone, walkie-talkie, WIFI and so on. An excellent jammer should have effectiveness for all frequency bands. Our company develops ZD-GR1000 vehicle mounted jamming system can jam all the typical radio remote-control signal within frequency range of 20~6000MHz and stop activation of remote-control bombs. The system applies the state of art intelligent jamming and control technology in the industry. It accurately transmits jamming signal base on characteristics of target signal to achieve the best jamming effect. Especially, the technology improves jamming effect on walkie-talkie, 4G and 5G mobile communication signals. The system complies military standard design and technology that allows it to set allied frequency for security officers. They can still keep communication while the system is jamming all frequency within 20~6000MHz. It provides security officers tactical convenience
The system’s core components apply fully digitalized circuit design. The antenna array is optimum designed for better reliability and practicality. The system really provides powerful technical support for anti-terrorism and public security staff.
This jammer can be widely used by departments of police, anti-terrorism and country security protection.
- It can prevent activation of remote-controlled bombs and stop the terrorism activities.
¨ It can prevent terrorism attack and harassment of drones.
¨ For some VIP convoy, the system protects them during their traveling and ensures security of their parking area.
¨ For the emergency security protection during mass disturbances and large meeting, it can block the mobile signal in a large range to stop the extension of turbulence.
- When it is used in scenes of illegal gambling or sell drug, it can block mobile phone signal to stop the communication between criminals.
¨ It can set allied frequency within jamming frequency bands to ensure ally communication during transmitting；
¨ The system pertinently jam remote-control links include remote-controller, walkie-talkie,2G/3G/4G/5G mobile communication,satellite telephone,WIFI,Bluetooth and so on；
¨ Extremely wide band jamming coverage. It can continuously jam radio signal in all the typical bands within 20-6000MHz；
¨ Apply military standard mobile communication intelligent jamming technology in the industry；
¨ It has self-protection functions include protection of overheat, overvoltage, VSWR, short circuit and so on；
¨ Human-machine interaction design. User can rapidly operate the system on driver seat；
¨ Modular design. All channels can switch on/off individually；
¨ Apply engine drive generator to be power supply. The system can work during vehicle driving.
4. Technical specifications
¨ Frequency range:main bands in 20-6000MHz include remote-controller,walkie-talkie,drone,satellite telephone,2G/3G/4G/5G,WIFI signal, etc；
¨ Total average transmitting power:800W
¨ Jamming radius:³200m(typical value,transceiving distance of remote-controller≥100m,transceiving distance of walkie-talkie≥400m,mobile signal strength RSSI≤-65dBm,distance for different target is different)
¨ Antenna quantity:10
¨ Input voltage:AC220V or engine drive generator
¨ Continuously working time; more than 8 hours
¨ Main unit weight:£60Kg
¨ Main unit dimension(mm):550*480*600mm(L*W*H)
¨ Operation temperature:－20℃～55℃.
