5km Detection IP65 Proof Anti Drone Equipment With Light Device Weight

Product Details

Place of Origin: Jiaxing, Zhejiang, China

Brand Name: Zhejiang Zhongdeng Electronic Technology

Model Number: ZD-ZG040-5000-2-3000

Payment & Shipping Terms

Get Best Price
Product Details
High Light:

5km Detection Anti Drone Equipment

,

IP65 Proof Anti Drone Equipment

,

5km Detection Drone Detection And Jamming

Detection Distance:
5km
Product Name:
Drone Detection And Jamming System
Simultaneously Detection Drone Quantity:
More Than 30
Device Weight:
Detection Main Unit:10Kg,Jamming Main Unit:20Kg,
Dimensions:
Detection Main Unit 350mmX240mmX150mm, Jamming Main Unit: 410X320X170mm
Detection Distance:
5km
Product Name:
Drone Detection And Jamming System
Simultaneously Detection Drone Quantity:
More Than 30
Device Weight:
Detection Main Unit:10Kg,Jamming Main Unit:20Kg,
Dimensions:
Detection Main Unit 350mmX240mmX150mm, Jamming Main Unit: 410X320X170mm
Product Description

5km detection range stationary anti-drone System with light device weight



ZD-ZG040/5000/2/3000

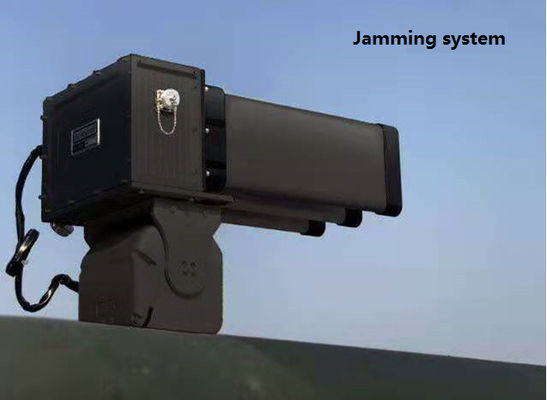

Stationary drone detection and jamming system --- passive detection,recognition,automatic jamming



  1. Description

With the development of drone technologies, drones with advanced functions and low cost become more and more popular in many countries. In the opposite side, drones bring risks and challenges for security protection system of many important places like military base, government building, gas station, power system and so on. To provide effective protection for important places, our company produces ZD-ZG040/5000/2/3000 stationary drone detection and jamming system. It consists of detection subsystem and jamming subsystem. Both subsystems can work separately which makes deployment convenient. The detection system applies radio frequency identification and recognition technology. By using this technology, the system can identify drone model and frequency accurately with a large detection radius of 5km. Besides, the light device weight of system makes it easy to be deployed or installed in any position.



       2. Functions

  • Long range: Long detection radius of 5km and jamming distance of 3km.
  • Light device weight: Detection main unit:10Kg,Jamming main unit:20Kg,
  • Accurate recognition:It recognizes type and unique electronic fingerprint of drone accurately and starts alert;
  • No duty people require:It can activate no duty people mode. Once drones are detected, the system starts alert;
  • White lists:The system can mark allied drones on white lists. Drones on the white lists will not activate alert and be jammed;
  • Drone directional find:The system has directional search module which can find directional of drone inside its detection range.
  • Directional jamming: The device has low radiation power so that it has raw effect on surrounding area; but it has many jamming frequency bands;
  •  Built in GPS module to provide GPS location;
  • It applies special lightning protection components to improve its stability in extreme environment;
  • Continuously work time:All day 24h
  •  Extension ability:the system can be updated to add new drone detection bands;
  • Built in the latest NVIDIA JETSON XAVIER ai computer process system;
  • Built in GPS module to provide GPS location;
  • Continuously work time:All day 24h



      3. Technical specifications



  • Proof:IP65.
  • Detection distance:≥5km(for ideal open place )
  • Simultaneously detection drone quantity :≥30 drones
  • Drone direction detection accuracy:≤9 degree(follow)
  • Detection sensitivity:better than -95dBm(25kHz)
  •  Detection bands:2.4G(2.4GHz~2.485 GHz),5.8G(5.725GHz~5.85GHz)
  • Jamming bands:0.9G,1.2G,1.5G,2.4G,5.8G
  • Jamming distance:3km(for phantom 3,4)
  • Operation voltage:AC220V±20V
  • Device dimensions:Detection main unit 350mmX240mmX150mm, Jamming main unit:410X320X170mm
  • Device weight:Detection main unit:10Kg,Jamming main unit:20Kg,
  • Operation temperature:-40°~+70°C
