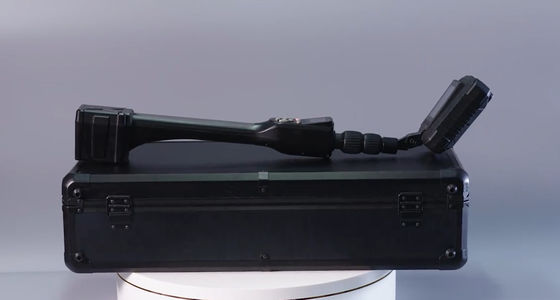

• High Sensitivity Junction Detector 1.5Kg With 2.4GHz Frequency Band
High Sensitivity Junction Detector 1.5Kg With 2.4GHz Frequency Band

High Sensitivity Junction Detector 1.5Kg With 2.4GHz Frequency Band

Product Details:

Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: ZD-JD007
Get Best Price Contact Now

Detail Information

Product Name: Junction Detector Working Frequency: 2.4GHz
Device Weight: 1.5Kg Sensitivity: Less Than -135dbm
Battery Time: 4.5h
High Light:

High Sensitivity Junction Detector

,

1500G Junction Detector

,

2.4GHz Frequency Band Non Linear Detector

Product Description

High sensitivity Junction Detector 1.5Kg with 2.4GHz frequency band





Introduction

  To ensure secrets security of some important place like government department. Our company developed the latest generation junction detector called ZD-JD007 junction detector. It works at 2.4GHzable to detect any electronic device hidden in walls, floors, ceilings, lamps, furniture or containers. It applies our advanced harmonic signal detection technology and has high sensitivity less than -135dbm. Where these electronic devices are transmitting singers or not, they are detected and alerted by display, vibration and sound prompts. Then detector can focus on hidden targets. Also, the detector has light weight of 1.5Kg and can be carried by user easily.





Application scenes

1. Government Secrecy Department such as public security, justic, prisons, education, troops, and so on.

2. Cheating Prevention In Education Industry Examination

3. Security inspection of large scale activities

4. Confidentiality Inspection of Commerical Organizations



Product Characteristics

  • Strong semiconductor detect ability: With the 2nd and 3rd harmonic signal strength detection technology, it can quickly and effectively identify device and semiconductor materials inside it.
  • High sensitivity: The junction detector is equipped with built-in high gain antenna to achieve high sensitivity less than -135 dbm. It has long detection distance especially for SIM card devices. To ensure secret, mobile communication equipment will be detected quickly.
  • Friendly interaction interface: Support visual graphical interface, bright display of power emission level, 2nd and 3rd harmonic graphics, easy to operate.
  • Low false alarm rate: The built-in nondestructive detection algorithm greatly improves the detection ability, and the false alarm rate is very low.
  • Safety and reliability: The characteristics of equipment meet the requirements of electromagnetic radiation and are absolutely safe for human body.
  • Flexible operation: The interface is simple and intuitive, with few buttons and easy manual operation.
  • High cost performance: The most cost-effective, cost saving and excellent performance in the world.



Specifications

Paramter Technical index
Product working frequency band

 2400MHz

Working voltage  7.4V
Frequency range  2.404-2.472GHz
Receiving 2nd-3rd signal harmonic range

 4.808-4.944GHz

 7.212-7.416GHz

Maximum transmit power  4W(EIRP)
Receiving sensitivity  Less than -135 dbm
Receiving dynamic adjustable range  30dbm
Battery working time

 4.5h(Typical mode)

(Typical mode means 30% transmitting power, low receiving gain, and no vibration)

Battery type Lithium battery
Charging time

3.5H/Block

Through type-c interface

Interactive interface The screen displays the intensity of the received harmonic signal. Audio prompts are supported and headphones can be connected. Supporting vibration tips.
Detection distance

TF card: 120-200mm

Mobile phone: ( Iphone7: 80-120mm   Huawei P30: 150-200mm)

Product size 750(L)*114(W)*108mm(H)
outer box size 700(L)*330(W)*180mm(H)
Product weight 1.5Kg±0.05Kg
Operation temperature Optional battery:-30℃~55℃
Operation humidity No more than 93%, no condensate



ZD-JD007(1).pdf
