|Weight Of Main Unit:||168Kg||Dimensions（mm）:||700（W）X480（H）X550（D）|
|Frequency Range:||20-6000MHz||Input Voltage:||AV220V|
|Product Name:||Vehicle Mounted Jammer|
1000W vehicle signal jammer,
20MHz vehicle signal jammer,
AV220V vehicle cell phone jammer
1000W Vehicle Cell Phone Jammer With Frequency 20-6000MHz Includes Celluar Bands
1000W Vehicle Cell Phone Jammer with frequency 20-6000MHz includes Celluar Bands

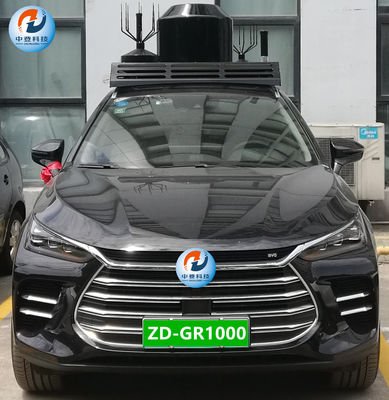

In the recent years, the development of communication technology makes social disturbance and terrorism attack become more frequently than before. In order to defend against illegal actions that apply with modern communication technology, our company designed vehicle mounted jamming system called ZD-GR1000 vehicle anti-bomb jamming system. It is the latest generation system which applies digital interference code jamming and control technology. This jamming system can jam all kinds of wireless communication within 20 to 6000MHz. The advanced technology also makes jammer use low power to cause long jamming distance. It reduces damage of high temperature and strong high frequency radiation on passengers’ health markedly.It classifies standards of different signal and jams them by using corresponding optimal methods which achieves the best jamming effect. It overcomes common weakness of jammer from other companies such as weak jamming effect for walkie-talkie or 3G and 4G signals The core parts of ZD-GR1000 are designed with all digital circuit. The antenna system and vehicle power supply are designed with optimal methods which improves reliability and utility of the jamming system. This system can be used to protect anti-terrorism staff and public security personnel.
This jammer can be widely used by departments of police, antiterrorism and country security protection.
- When it is used in scenes of illegal gambling or sell drug, it can block mobile phone signal to stop the communication between criminals.
- When it is used in important department of country security and military, it can block wireless signal.
- For some VIP convoy, the system protects them during their traveling and ensures security of their parking area.
- For the emergency security protection during mass disturbances and large meeting, it can block the mobile signal in a large range to stop the extension of turbulence.
- It can prevent activation of remote controlled bombs and stop the terrorism activities.
- It can prevent terrorism attack and harassment of drones.
- The system applies optimal advanced jamming and control technologies. It has the best jamming effect in each frequency band.
- The system has small volume and light weight. It doesn’t have many requirements such as high level heat dissipation on vehicle. The system is also easy to be installed.
- The system also has handheld display. It is put near the driver seat which makes control and monitor convenient.
- Each frequency band of the system can work individually. The user can select jamming several bands and set some other bands for communication.
- It has functions of displaying work state (band, output power, battery percentage), error warning (overpress, underpress, overheat) and so on.
4. Technical specifications
Working frequency bands and power:
Remote controller, walkie-talkie, 2G/3G/4G mobile communication bands, drone navigation and drone control bands(specific bands refer to the local country)
¨ Total RF power:1500W±1dBm
¨ Jamming technology:digital interference code jamming technology
¨ Jamming distance: Mobile phone: 100-500m (signal strength shows in mobile phone: 3G≤-85dBm/4G≤-100dBm,jamming distance is 500m)；
drone:≥1000m(DJI phantom 3S/phantom 4)；
walkie-talkie:200m (3W distance between two walkie-talkie is 200m)；
remote controller:200m(distance between controller and receiver is 100m,control distance of controller is no more than 300m).
¨ Input voltage:AC220V；
¨ Power consumption:≤5KW；
¨ Main device weight:168Kg
¨ Device dimension(mm):700(W)´480(H)´550(D)
¨ Operation temperature:－20℃～+55℃.
