Product Details
Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: ZD-ZG030/3000/3/1500
Payment & Shipping Terms
Product Name: |
Backpack Drone Detection And Jamming System |
Detection Distance: |
3Km |
Detection Frequency Bands: |
900MHz, 2.4GHz, 5.8GHz |
Jamming Frequency Bands: |
0.9G,1.2G,1.5G,2.4G,5.8G |
Device Weight: |
7kg; |
Product Name: |
Backpack Drone Detection And Jamming System |
Detection Distance: |
3Km |
Detection Frequency Bands: |
900MHz, 2.4GHz, 5.8GHz |
Jamming Frequency Bands: |
0.9G,1.2G,1.5G,2.4G,5.8G |
Device Weight: |
7kg; |

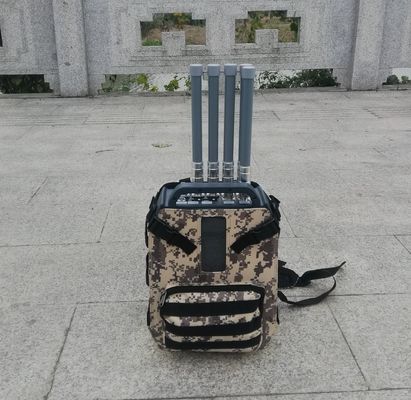

Backpack Drone Detection And Jamming System---Passive Detection,Recognition,Accurate Jamming,Port
ZD-ZG030/3000/3/1500
portable drone detection and jamming system---passive detection,recognition,accurate jamming,portable
1.Description
ZD-ZG030/3000/3/1500 portable drone detection and jamming system consists detection system and jamming system. It can automatically detect and jam drones. The detection system is passive system with no dead zone and disruption. It can act advance alert, recognize enemy and allied drone and accurate jam drones. It is able to identify unknown drones. The jamming system is portable system with wide frequency bands, long jamming distance and low power of environmental friendly RF radiation. The system is convenient for carry and install. It can be widely used in prisons, important conference, large rallies and important places to ensure security.
2.Functions
¨ Passive detection:The system doesn’t transmit any electromagnetic signal. It only passive receives signal so that it has no effect on the nearby electromagnetic environment;
¨ Accurate recognition:It recognizes type and unique electronic fingerprint of drone accurately and starts alert;
¨ Alarm:Once detect drones, alarm starts automatically
¨ Search direction:Once alarm start, find the direction of drone by using handheld direction antenna and direction sensor. Then staff can aim the accurate direction of drone;
¨Black and white list:It can set black and white list just by one key, drones in white list will not activate alarm;
¨ Upgrade:The system can be upgraded if new drone bands are required.
¨ Low jamming power and radiation on user, long jamming distance of 1.5km.
3.Technical specifications
¨ Detection distance:≥3km
¨ Detection bands:900M,2.4G,5.8G(can add bands as requirements)
¨ Detection angle:360°
¨ Jamming bands:5 bands,0.9G,1.2G,1.5G,2.4G,5.8G
¨ Jamming distance:1.5km
¨ Main unit weight:7kg(device weight,backpack and other accessories are not included);
¨Main unit dimensions: 380*280*150mm(pure device size,backpack and other accessories
are not included);
¨Operation temperature:-10°~+55°C
