Product Details
Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: ZD-ZC040/3000/2
Payment & Shipping Terms
Product Name: |
Stationary Drone Detection System |
Detection Distance: |
3/5/9Km |
Frequency Bands: |
2.4G, 5.8G |
Total Power Consumption: |
Less Than 35W |
Device Weight: |
6Kg |
Product Name: |
Stationary Drone Detection System |
Detection Distance: |
3/5/9Km |
Frequency Bands: |
2.4G, 5.8G |
Total Power Consumption: |
Less Than 35W |
Device Weight: |
6Kg |
Stationary Drone Detection System ---Passive Detection,Recognition,Unlimited Network Connection
ZD-ZC040/3000/2
stationary drone detection system
----Passive detection,Recognition,Unlimited network connection
1.Description

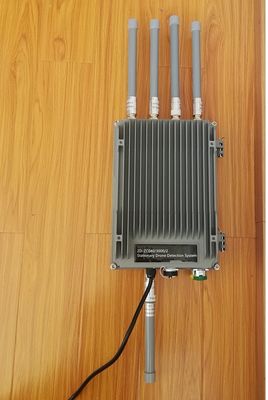

ZD-ZC040/3000/2 stationary drone detection system is designed as small volume. It consists radio signal process unit,antenna array,control unit. It is able to automatically conduct passive detection without dead zone and disruption. It has super advance alert and accurately recognize enemy drone or ally drone. It is also able to detect unknown drones. According to the different set up of device, this product includes three types with detection distances of 3Km/5Km/9Km. And network connection can extend the detection many times.
2.Functions
Passive detection:It only passive receive signal without signal transmitting. It doesn’t impact the nearby electromagnetic environment;
¨ Accurately recognition:It accurately detects drones and identifies the type of it and owner’s fingerprint. Once drones are detected, the alert will be started;
¨ No man mode:The system has a mode that needs no people on duty to operate it. It will start alert after detect drones;
¨ Super advance alert: In the required protect area, even the drone controller can be detected and recognized when it is turned on. So, people can take methods to deal with drones before them take off;
¨ Black and white list:It allows people to set black and white list for drones, detection of drones in the white list will not start alert;
¨ Integrative:It has standard drone detection program and can be integrated with radar, light detection and jamming system;
¨ Upgrade:It can be upgraded to add new drone bands;
¨ Continuous working time:24 hours all day work.
3.Technical specifications
¨ Detection distance:≥3km
¨ Work frequency bands:2.4GHz~2.485 GHz,5.725GHz~5.85GHz
¨ Detection range:360°,omni-directional detection.
¨ Detection sensitivity:better than -110dBm(25kHz)
¨ Total power consumption:≤35W
¨ Operation voltage:AC220V±20V
¨ Device weight:6Kg
¨ Device dimension:350*240*150mm
¨ Operation temperature:-40°~+70°C
¨ Proof level:IP66.
