Home > products > Military Signal Jammer > Vehicle Mounted Military Signal Jammer 20-6000 MHz Working Frequency

Vehicle Mounted Military Signal Jammer 20-6000 MHz Working Frequency

Product Details

Place of Origin: Jiaxing,Zhejiang, China

Brand Name: Zhejiang Zhongdeng Electronic Technology

Model Number: ZD-GR500 vehichle frequency jamming system

Payment & Shipping Terms

Minimum Order Quantity: negotiable

Price: negotiable

Get Best Price
Product Details
High Light:

military cell phone jammer

,

military jamming systems

Input Voltage::
AC220V
Total Output Power::
500W
Continuously Working Time::
More Than 8 Hours
Weight Of Main Unit::
148Kg
Dimensions(mm)::
1000(W)580(H)606(D)
Working Temperature::
-20℃~55℃.
Input Voltage::
AC220V
Total Output Power::
500W
Continuously Working Time::
More Than 8 Hours
Weight Of Main Unit::
148Kg
Dimensions(mm)::
1000(W)580(H)606(D)
Working Temperature::
-20℃~55℃.
Product Description

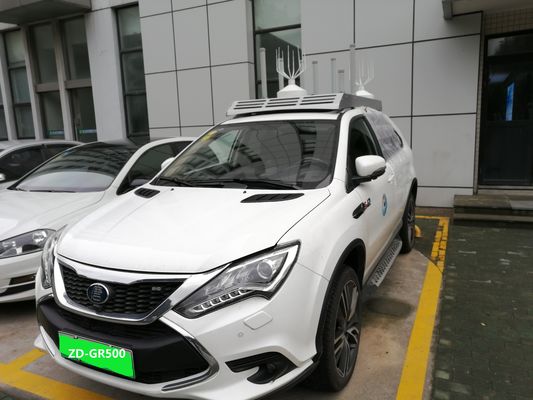

ZD-GR500 vehichle military signal jamming system



1. Overview

ZZD-GR500 vehichle military signal jamming system is the latest generation system which applies digital interference code jamming and control technology. This jamming system can jam all kinds of wireless communication within 20 to 6000MHz. It classifies standards of different signal and jams them by using corresponding optimal methods which achieves the best jamming effect. It overcomes common weakness of jammer from other companies such as weak jamming effect for walkie-talkie or 3G and 4G signals. The advanced technology also makes jammer use low power to cause long jamming distance. It reduces damage of high temperature and strong high frequency radiation on passengers’ health markedly. The core parts of ZD-GR500 are designed with all digital circuit. The antenna system and vehicle power supply are designed with optimal methods which improves reliability and utility of the jamming system. This system can be used to protect anti-terrorism staff and public security personnel.



2, Technical specifications
• Frequency band:20-6000MHz—include remote controller, walkie-talkie, drone, satellite telephone, 2G,3G,4G,WIFI and other signals;
• Total output power:500W
• Jamming distance:300m(GSM mobile signal with -70dBm signal field intensity ,visible distance, others regarding the product standard)
• Input voltage:AC220V
• continuously working time:more than 8 hours
• Weight of main unit:148Kg
• Dimensions(mm):1000(W)580(H)606(D)
• Working temperature:-20℃~55℃.



ZD-GR500 vehicle jamming system.docx
