Product Details
Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: ZD-GR030-2000-5
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Product Name: |
Handheld UAV Jammer |
Jamming Frequency: |
0.9G To 5.8G |
Jamming Distance: |
2km |
Power Supply: |
Build-in Lithium Battery |
Dimensions: |
41cmX32cmX17cm |
Functions: |
Protect Public Security |
Product Name: |
Handheld UAV Jammer |
Jamming Frequency: |
0.9G To 5.8G |
Jamming Distance: |
2km |
Power Supply: |
Build-in Lithium Battery |
Dimensions: |
41cmX32cmX17cm |
Functions: |
Protect Public Security |
Military Handheld Drone Jammer Single Person Operated 2.5 Hours Long Working Time
1. Overview
Nowadays, the small drones with slow speed and low flying height become popular in civilians. It can be used by people for many applications such as aerial photography, mapping, traffic management, power line checking, pesticide spraying,anti-terrorism reconnaissance and people rescue.
However, the drones also have some negative effect on society. Some drone hobbyist play their drones around airport and some crowded places. Criminals use drones to transport drug,escape from prison, spy military bases, spread leaflets and deliver dangerous things.
When the drones with slow speed and low flying height entry some important or sensitive areas,people urgently need to know the methodsto deal with these drones at emergence moment. In addition to enhance supervision, technique equipment is also important.ZD-GR030-2000-5 handheld drone jammer applies the automatic digital interference code technology.It blocks the remote-control channels in the range from 0.9GHZ to 5.8GHz of drone by emitting wireless interference signal. Then the drone can’t be remote controlled and move away from the original flyingpath. (The drone may land or go back to the starting point) .The build-in battery can support jammer to continuous work for 2.5 hours that ensures the effectiveness of jamming missions. It can prevent criminals using drones to do illegal things such as bombsactivation, spying military base, distributing leaflets, dangerous objects delivery and other harmful actions. It should be used to protect security of important places and important political leaders.
This jammer is manufactured by ZhejiangZhongdeng electronic technology Co.Ltd. The advantages of this jammer are completed jamming frequency and long continuous working time. It is widely used for security protecting of important conference, large rallies and important places.
2. Functions
1) It can effectively remote interfere the control signal of small drone with slow speed and low height like wireless remote control drones and drones with GPS, Glonass, Beidou navigation system. The interfered drones will not be remote controlled and go back to the starting point or land
.2) Once the illegal drones is found to be close to or entry the warning area, the jammer will directional interferes themimmediately.
3. Advantages
1) Completed jamming frequency. This product contains all the remote-control bands of small drone with slow speed andlow height in the current market. These bands include 900MHz, 2.4GHz, 5.8GHz and GPS.
2) Low RF power. The total output power of all the five working bands in this jammer is 20W. This jammer also has long interference distance of 1500 meters. (For Phantom 3 and Phantom 4).
3) The power supply can make jammer keep working for 2.5 hours that ensures effectiveness of jamming missions.
4) It can work in some special situations such as light rain, snow and low temperature wild environment.
4. Technical specifications
1) Working bands: 5 bands
Satellite navigation 1.5G:1559-1606MHz GPS,Glonass,Beidou
2.4G:2405-2483MHz drone with 2.4Gcontrol signal frequency
5.8G:5725-5850MHz drone with 5.8Gcontrol signal frequency
F1, F2: These are the special bands which will be decided refer to the drone bands of different countries.
2) Jamming distance
No less than 2000 meters(For phantom 3 and phantom 4, the horizontal distance from controller to drone is 100 meters and the flying height of drone is 100 meters)

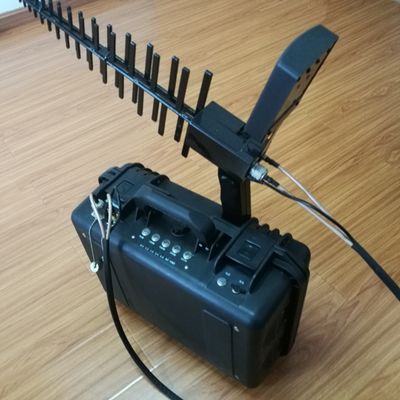

3) Antennas(2 antennas)
One antenna is a log periodic antenna. Another antenna is a panel antenna. These two antennas can combine into one entire antenna.
4) Power supply (lithium battery inside the main device)
The battery can supportthe device keep emitting signal for no less than 2.5hours. The waitingtime of device is not less than 24 hours.
5) Equipment weight:8Kg
6) Size:41X32X17cm
7) Waterproof:It can work inlight rain
8) Operation :First, user looksfor drones by using remote telescope. When illegal drones are observed to be close to or entry the warning area, the jammer will directional interfere the targets. Besides, the jammer can be operated by single person.
