Product Details
Place of Origin: Jiaxing, Zhejiang, China
Brand Name: Zhejiang Zhongdeng Electronic Technology
Model Number: ZD-GR030-2000-5
Payment & Shipping Terms
Minimum Order Quantity: negotiable
Price: negotiable
Product Name: |
Handheld Drone Jammer |
Jamming Frequency: |
0.9G To 5.8G |
Jamming Distance: |
2km |
Device Weight: |
8kg |
Product Name: |
Handheld Drone Jammer |
Jamming Frequency: |
0.9G To 5.8G |
Jamming Distance: |
2km |
Device Weight: |
8kg |
20W low RF power handheld drone jammer with completed jamming frequency from 0.9GHz to 5.8G
1. Overview
Nowadays, the small drones with slow speed and low flying height become popular in civilians. It can be used by people for many applications such as aerial photography, mapping, traffic management, power line checking, pesticide spraying,anti-terrorism reconnaissance and people rescue.
However, the drones also have some negative effect on society. Some drone hobbyist play their drones around airport and some crowded places. Criminals use drones to transport drug,escape from prison, spy military bases, spread leaflets and deliver dangerous things.
When the drones with slow speed and low flying height entry some important or sensitive areas,people urgently need to know the methodsto deal with these drones at emergence moment. In addition to enhance supervision, technique equipment is also important. ZD-GR030-2000-5 handheld drone jammer applies the automatic digital interference code technology.Itblocks the remote-control channels of drone by emitting wireless interference signal. Then the drone can’t be remote controlled and move away from the original flying path. (The drone may land or go back to the starting point) .This jammer can be used to form “no fly zone” of drones. It can prevent criminals using drones to do illegal things such as bombs activation, transporting drug, escaping from prison, spying military base, distributing leaflets, dangerous objects delivery and other harmful actions. It should be used to protect security of important places and important political leaders.
ZD-GR030-2000-5 handheld drone jammer is manufactured by Zhejiang Zhongdeng electronic technology Co.Ltd in China. It is also supervised by The First Research Institute of Public Security Ministry. The advantages of thisjammer are easy carrying, high accuracy, environment friendly and can be operated by single person. It is widely used for security protecting of important conference, large rallies and important places.
2. Functions
1) It can effectively remote interfere the control signal of small drone with slow speed and low height like wireless remote control drones and drones with GPS, Glonass, Beidou navigation system. The interfered drones will not be remote controlled and go back to the starting point orland
2) Once the illegal drones is found to be close to or entry the warning area, the jammer will directional interferes the mimmediately.
3. Product features
1) Multiple working bands. This product contains all the remote-control bands of small drone with slow speed andlow height in the current market. These bands include 900MHz, 2.4GHz, 5.8GHz and GPS.
2) Low RF power. The total output power of all the five working bands in this jammer is 20W. This jammer also has long interference distance of 1500 meters. (For Phantom 3 and Phantom 4).

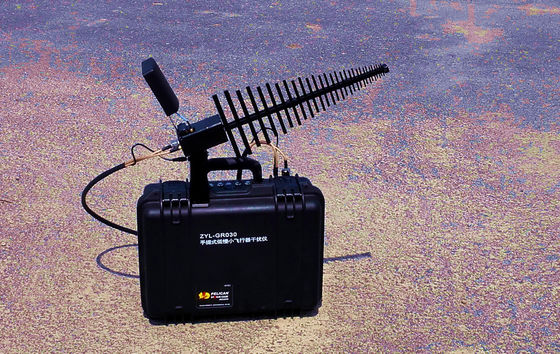

3) The main device can be separated with the antenna.The antenna is designed as gunshape and it has light weight of 700g. The antenna can be operated by single hand for a long time. The antenna can also be formed on the main device to build an entire device.
4) The antenna has large directional angle.When people operate the antenna, they don't need to take aim but only need to point the antenna towardthe general direction.Therefore, the jammercan providea large protecting area. And the jammer can interfere multiple drones when they entry the protecting area.
5) Due to large protecting area of the jammer,it is easy for people to build a “no flying zone”. And the power supply can make jammer keep working for 2.5 hours thatensures the “no flying zone”is effectively.
6) The operating panel of the main machine is equipped with individual band switches. These switches can be used to selectthe interference bands.
7) The jammer has function of battery protecting.It can arrange the battery power andtemperature. To protect the battery, the jammer can reminder user to turn off it when the battery power is low.
8) The battery can be taken off easily if customers require. Therefore, the main device and battery can be transported individually. This featureis useful in airlift.
9) It has function of self-protect.Once the antenna or wire connection got problems, the jammer would start alarm and turn off the inside circuit to protect important components from damage.
10) It can work in some special situations such as light rain, snow and low temperaturewild environment.
4.Technical specifications
1) Working bands: 5 bands
Satellite navigation 1.5G:1559-1606MHz GPS,Glonass,Beidou
2.4G:2405-2483MHz drone with 2.4Gcontrol signal frequency
5.8G:5725-5850MHz drone with 5.8Gcontrol signal frequency
F1, F2: These are the special bands which will be decided refer to the drone bands of different countries.
2) Jamming distance
No less than 2000 meters(For phantom 3 and phantom 4, the horizontal distance from controller to drone is 100 meters and the flying height of drone is 100 meters)
3) Antennas(2 antennas)
One antenna is a log periodic antenna. Another antenna is a panel antenna. These two antennas can combine into one entire antenna.
4) Power supply (lithium battery inside the main device)
The battery can supportthe device keep emitting signal for no less than 2.5hours. The waitingtime of device is not less than 24 hours.
5) Equipment weight:8Kg
6) Size:41X32X17cm
7) Waterproof:It can work inlight rain
8) Operation :First, user looksfor drones by using remote telescope. When illegal drones are observed to be close to or entry the warning area, the jammer will directional interfere the targets. Besides, the jammer can be operated by single person.
