3Km Distance Passive Accurate Jamming Portable Drone Detection
Product Details:
| Place of Origin: | Jiaxing, Zhejiang, China |
| Brand Name: | Zhejiang Zhongdeng Electronic Technology |
| Model Number: | ZD-ZG030-3000-2-2000 |
|
Detail Information |
|||
| Product Name: | Portable Drone Detection And Jamming System | Detection Distance: | 3Km |
|---|---|---|---|
| Detection Frequency Bands: | 2.4G, 5.8G | Jamming Frequency Bands: | 0.9G，1.2G，1.5G，2.4G，5.8G |
| Device Weight: | Detection System 5Kg，Jamming System 8kg； | ||
| High Light: | 3Km distance Drone detector,5.8G Passive Portable Drone Detection,2.4G Accurate Jamming Drone Detection |
||
Product Description

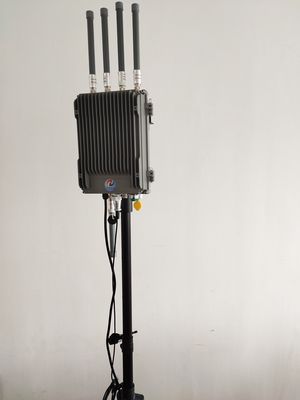

Portable Drone Detection And Jamming System---Passive Detection,Recognition,Accurate Jamming,Port
ZD-ZG030/3000/2/2000
portable drone detection and jamming system---passive detection,recognition,accurate jamming,portable
- Description
ZD-ZG030/3000/2/2000 portable drone detection and jamming system consists detection system and jamming system. It can automatically detect and jam drones. The detection system is passive system with no dead zone and disruption. It can act advance alert, recognize enemy and allied drone and accurate jam drones. It is able to identify unknown drones. The jamming system is portable system with wide frequency bands, long jamming distance and low power of environmental friendly RF radiation. The system is convenient for carry and install. It can be widely used in prisons, important conference, large rallies and important places to ensure security.
- Functions
... Passive detection:The system doesn’t transmit any electromagnetic signal. It only passive receives signal so that it has no effect on the nearby electromagnetic environment；
¨ Accurate recognition: It recognizes type and unique fingerprint of drone accurately and starts alert；
¨ No duty people require:It can activate no duty people mode. Once drones are detected, the system starts alert；
¨ Super advance alert/ automatic jamming: In the required protection area, drone controller can be detected and identified once they are turned on. The system will preset before drones take off and start jamming when drones reach the protection area；
¨ Black and white lists:The can mark drones on black and white lists. Drones on the white lists will not activate alert；
¨ Extension ability:the system can be updated to add new drone detection bands;
¨ Low jamming radiation power,large quantity of jamming bands,long jamming distance of 2km.
- Technical specifications
¨ Detection distance:≥3km
¨ Detection bands:2.4G,5.8G(can be modified as requirements)
¨ Detection area:360°,omni-directional
¨ Detection sensitivity:Better than -110dBm
¨ Jamming bands:5 bands,0.9G,1.2G,1.5G,2.4G,5.8G
¨ Jamming distance:2km
¨ Product weight:Detection system 5Kg,Jamming system 8kg；
¨ Dimensions:Detection main unit 360*260*100mm
Jamming main unit 410*320*170mm
¨Operation temperature:-20°~+55°C
