2km Jamming Distance Anti Drone Jammers , Drone RF Jammer 2.5 Hours Working Time

Product Description

2km Jamming Distance Anti Drone Jammers , Drone RF Jammer 2.5 Hours Working Time

1. Overview

With the development of commerical drones, the small drones with slow speed and low flying height become popular in civilians. It can be used by people for many applications such as aerial photography, mapping, traffic management, power line checking and pesticide spraying.

Commerical drones also have some negative effect on society. Some users play their drones around airport and some crowded places. Criminals use drones to spy military bases, spread leaflets and deliver dangerous things. When the drones with slow speed and low flying height entry some important or sensitive areas,people urgently need to know the methodsto deal with these drones at emergence moment. In addition to enhance supervision, technique equipment is also important.ZD-GR030-2000-5 handheld drone jammer applies the automatic digital interference code technology.It blocks the remote-control channels of drone by emitting wireless interference signal. Then the drone can’t be remote controlled and move away from the original flyingpath. (The drone may land or go back to the starting point) .The jamming distance of this jammer is 2km and continuous working time is 2.5 hours. With such long jamming distance and working time, this jammer is able to be used for many security protecting missions. It can prevent criminals using drones to do illegal things such as bombs activation, transporting drug, escaping from prison, spying military base, and other illegal actions. It should be used to protect security of important places and important political leaders.

.ZD-GR030-2000-5 handheld drone jammer is manufactured by Zhejiang Zhongdeng electronic technology Co.Ltd in China. This jammer has advantages of long jamming distance,  long continuous working and can be operated by single person. It is widely used for security protecting of important conference, large rallies and important places.

2. Functions

1) It can effectively remote interfere the control signal of small drone with slow speed and low height like wireless remote control drones and drones with GPS, Glonass, Beidou navigation system. The interfered drones will not be remote controlled and go back to the starting point orland

.2) Once the illegal drones is found to be close to or entry the warning area, the jammer will directional interferes them immediately.

3.Advantages

1) Long jamming distance and low RF power. The total output power of all the five working bands in this jammer is 20W. This jammer also has long interference distance of 1500 meters. (For Phantom 3 and Phantom 4).

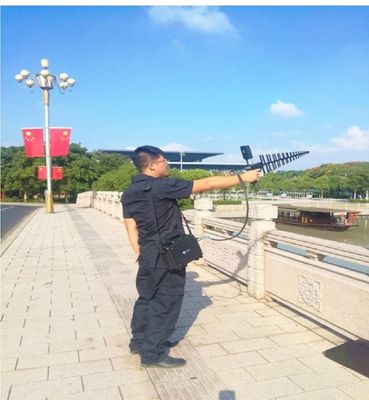

2) The main device can be separated with the antenna.The antenna is designed as gunshape and it has light weight of 700g. The antenna can be operated by single hand for a long time. The antenna can also be formed on the main device to build an entire device.

3) Long continuous working time, the power supply can make jammer keep working for 2.5 hours that ensures the effectiveness of security protecting mission.
4) The operating panel of the main machine is equipped with individual bands witches. Theseswitches can be used to selectthe interference bands.
5) It can work in some special situations such as light rain, snow and low temperature wild environment.

4. Technical specifications

1) Working bands: 5 bands
Satellite navigation 1.5G:1559-1606MHz GPS,Glonass,Beidou
2.4G:2405-2483MHz drone with 2.4Gcontrol signal frequency
5.8G:5725-5850MHz drone with 5.8Gcontrol signal frequency
F1, F2: These are the special bands which will be decided refer to the drone bands of different countries.
2) Jamming distance
No less than 2000 meters(For phantom 3 and phantom 4, the horizontal distance from controller to drone is 100 meters and the flying height of drone is 100 meters)

3) Antennas(2 antennas)
One antenna is a log periodic antenna. Another antenna is a panel antenna. These two antennas can combine into one entire antenna.
4) Power supply (lithium battery inside the main device)
The battery can supportthe device keep emitting signal for no less than 2.5hours. The waitingtime of device is not less than 24 hours.
5) Equipment weight:8Kg
6) Size:41X32X17cm
7) Waterproof:It can work inlight rain
8) Operation :First, user looksfor drones by using remote telescope. When illegal drones are observed to be close to or entry the warning area, the jammer will directional interfere the targets. Besides, the jammer can be operated by single person.

ZD-GR030-2000-5 handheld drone Jammer.doc
